Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead
  • Spectra Polaris PQ-512/35 AAA Printhead

Ver imagen más grande y otras vistas (con zoom)

Spectra Polaris PQ-512/35 AAA Printhead

(5 Reseñas)   |   1175 Transacciones

Codigo del articulo:PRH-SPE-006

Buyer Protection

Spectra Polaris PQ-512 / 35 AAA Printhead
To be used with: ORASIGN W-320PQ, ORASIGN W-180PQ, WIT-COLOR ULTRA4000 4H/6H, WIT-COLOR ULTRA4000 8H, Flora LJ320P, GONGZHENG GZT3204, GONGZHENG GZT3202, GONGZHENG GZR3208, GONGZHENG GZT3208AU, JHF A8 3304PQ, JHF A8 3308PQ, LEOPARD Q8 3304PQ, LEOPARD Q8 3308PQ, APRINT 330P, DGI PQ-3202 / PQ-3204, Eurotech Turbo, Flora HJII 5000UV, Wit-Color Ultra 4000-3304 / Ultra 4000-3308, JHF Vista Q8 3304PQ / Q8 3308PQ, Gongzheng StormJet T3208AU, Kornit Paradigm 933
Remarks: original

Description:

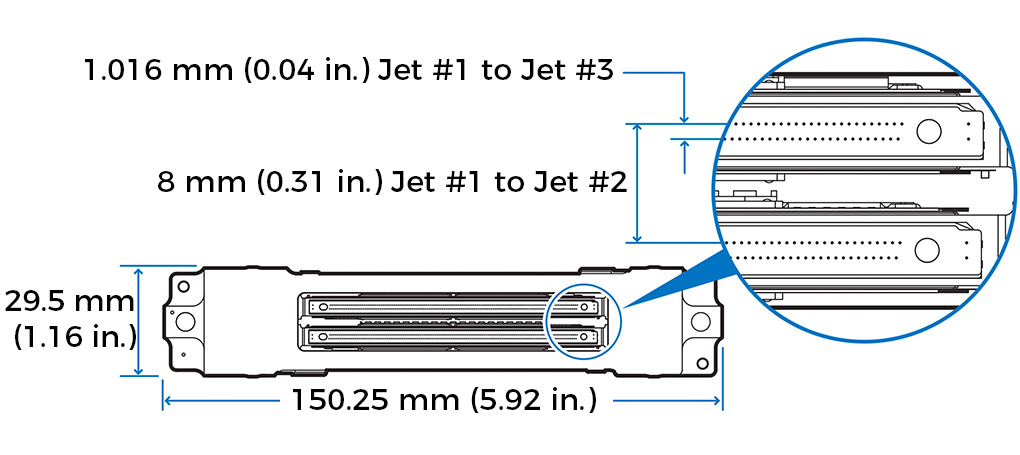

• The Polaris PQ-512 / 35 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

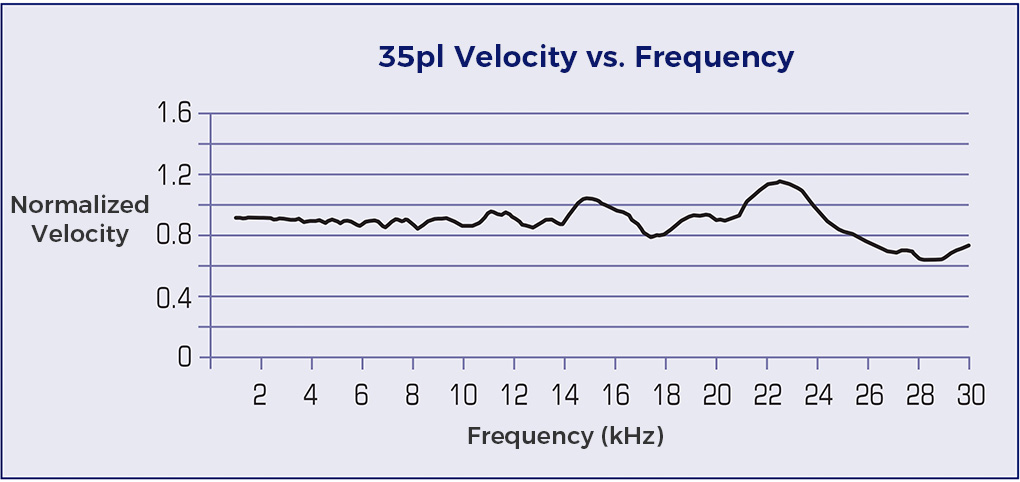

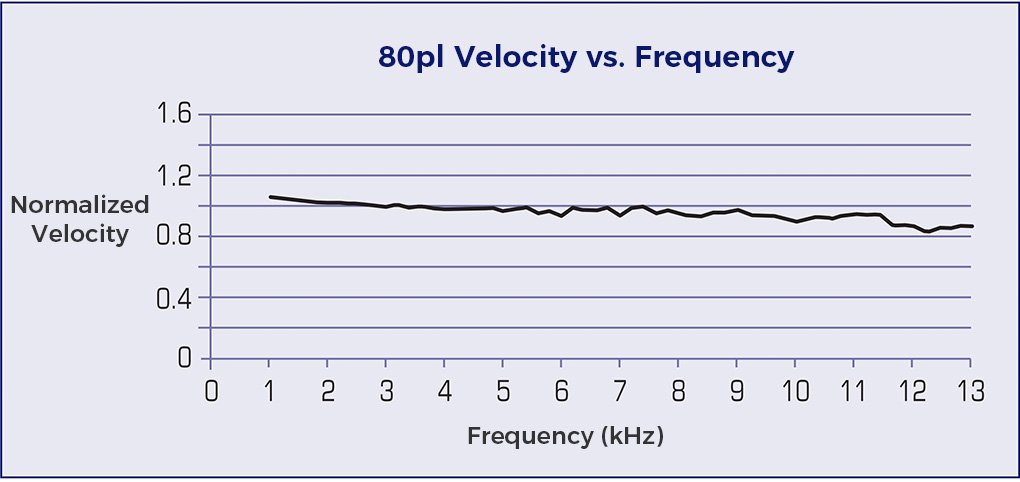

• The printhead is designed for binary jetting using a 35-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 80 picoliters with resolution up to 800 dpi.
• Building upon the legendary reliability and performance of the Spectra Nova and Galaxy printheads, the Polaris PQ-512 AAA family of printheads uses field proven materials and a repairable design to deliver a long service life and consistent output. And by leveraging the inherent flexibility of the Q-Class platform, the Polaris PQ-512 AAA offers even greater jetting performance, nozzle packing density, and configuration flexibility.
• The PQ-512 / 35 AAA Printhead is compatible with a broad range of inks, including UV-curable, aggressive organic solvent and aqueous inks and associated maintenance fluids.

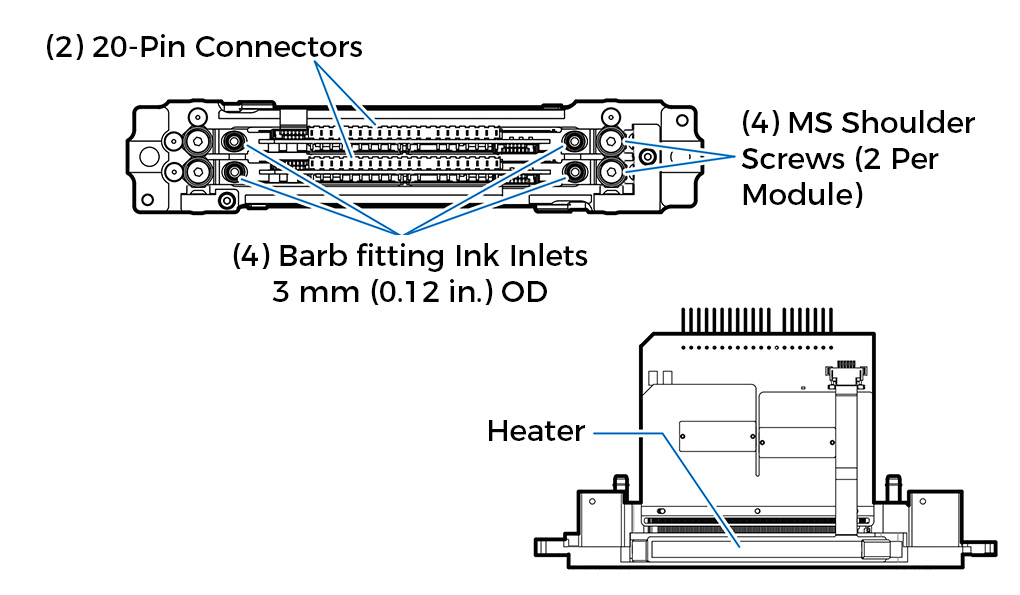

• The unique design of Polaris PQ-512 / 35 AAA Printhead allows each 256-channel module to be replaced and accurately registered in the field with no special tools or recalibration. An integral mounting bezel with precision registration points enables drop-in alignment with other carriage features.
• Two electrical connectors contain eight serial data linesthat supports fire frequencies in excess of 50 kHz.
• The flexible fluid interface allows single and two-color operation. Each 256-channel module is dual ported to facilitate easy priming, flushing and ink recirculation. Heaters and temperature sensors allow precise control of ink viscosity at jetting temperatures up to 60°C.

Features:
• 35 picoliter nominal drop size;
• 512 individual addressable nozzles;
• Incorporates VersaDrop™ binary jetting capability;
• Excellent channel-to-channel uniformity;
• High frequency continuous operation;
• Designed for long service life;
• Supports UV-curable, solvent, and aqueous-based inks;
• Configurable for single- and two-color operation;
• Integral mounting bezel with precision features;
• Optimized for high viscosity jetting fluids;
• Built-in heaters and temperature sensors;
• Operation up to 60°C [140°F];
• Simplified field repair with no special tools required.

Application:
The Spectra Polaris PQ-512/35 AAA Printhead is a high performance Inkjet Printhead designed for a broad range of industrial and commercial printing applications at resolutions up to 800 dpi. Robust construction and repairable design make it ideal for solvent, UV and aqueous based wide format printers built for demanding production environments.

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.

  • Todo
  • Guia
  • Descripcion del articulo
  • Envio
  • Pago
  • Otro
Pregunta
dear i need a Spectra polaris head 35pl , 3 pcs how much u can give me last price ?
By FOX from Georgia Jul 12,2020
Respuesta
Hi friend, many thanks for your inquiry, website quotation is the best price, for more concerns, welcome E-mail to overseas03@sign-in-china.com
Por Sign-in-china Jul 13,2020
Pregunta
I want to ask about the warranty to the head
By Asker from Azerbaijan Feb 25,2019
Respuesta

 hi my friend ,the warranty is :the head is original and new .any more question ,please contact me by email :overseas07@sign-in-china.com


Por Sign-in-china Feb 26,2019
Pregunta
Hi i have a couple of questions. dose this fit for LJ320P? for modle # LJ320P do i need 35 or 15? is installation hard?
By s9924470 from Paraguay Oct 11,2018
Respuesta
hi my friend ,yes,it can fit LJ320P，and 35pl is available ,any more question ,please contact me by email:overseas07@sign-in-china.com
Por Sign-in-china Oct 12,2018
Pregunta
Can you source the Spectra Polaris 512/80? These are for a Kornit Printer. Please contact me directly with bulk pricing. Thanks!
By dave from Brunei Sep 22,2016
Respuesta

Hi,there ,thanks for your question .I am sorry to tell you that we have no such a model of Spectra Polaris 512/80 printhead ,but we know there is a Spectra Polaris 512/85 pl one in market . confirm me please so that we can talk more details. here is my email address:overseas08@sign-in-china.com


Por Sign-in-china Sep 26,2016
Pregunta
Are you producing the spectra sapphire QS -256/10 AAA as these are the latest technology and we require up to 10 heads
By Peter from Timor-Leste Jan 26,2016
Respuesta
Hello,thanks for your questions,here can you send me photos of the printhead you need? So that I can confirm,Here is my email address: overseas01@sign-in-china.com
Por Sign-in-china Jan 28,2016
Pregunta
Hi Please let me know the very best price for two printheads Spectea Polaris 512/35 Delivering in El Paso Tx USA and let me know how many days the shipping days will take
By elemgraf from Lesotho Nov 16,2015
Respuesta
Hello,thanks for your questions,for 2pcs you can check the price online directly,and for 2pcs printhead,the system can offer you free shipping service,the delivery time by FedEx will cost 3-5working days,any more questions,email me: overseas01@sign-in-china.com
Por Sign-in-china Nov 16,2015
Pregunta
Em quanto tempo esse produto chega em minha empresa no Brasil. Grato!
By support from Chile Sep 13,2014
Respuesta
Hello,thanks for your questions,usually after you place the order,we will ship the goods to your by FedEx priority, It'll cost 3-5 working days to your office or home in Brazil,any more questions,email me :overseas01@sign-in-china.com
Por Sign-in-china Sep 15,2014
