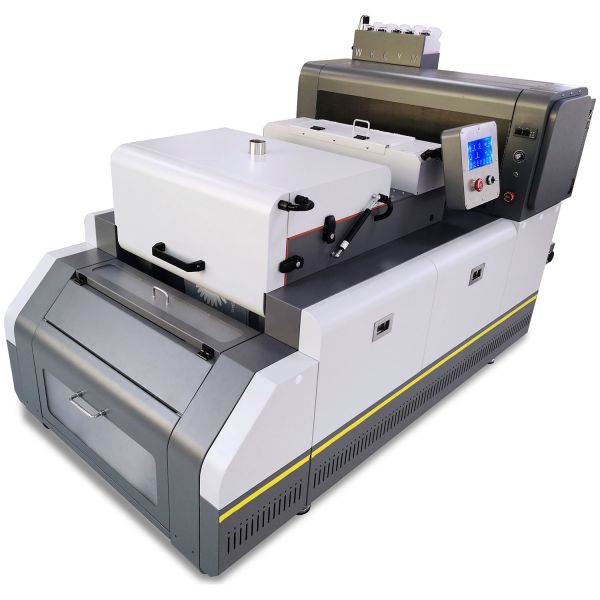

Legend Pro All In One 14.57in (370mm) DTF Printing System with DTF Printer (Dual Epson I3200-A1 Printheads), Powder Shaker and Dryer

Ver imagen más grande y otras vistas (con zoom)

Legend Pro All In One 14.57in (370mm) DTF Printing System with DTF Printer (Dual Epson I3200-A1 Printheads), Powder Shaker and Dryer

Codigo del articulo:DTFS-LP-BA3H2

Precio Unitario : $ 6,952/set (Aviso de Descuento)

Cantidad: set(s) Costo Total :
USD $6,952
Peso de Envio: 1069.4lb (486.09kg) Flete
item añadido al carro

0 total en su carro, Total del carrito: $

Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999

El vendedor asume toda la responsabilidad de este listado

Envío y manipulación

Cantidad: Pais:

1.Si opta por enviar por expreso, se puede ver que el honorario del envío es un poco alto, pero puede entregar a su puerta dentro de 3-5 días, sólo tiene que hacer el pago y esperar.
2.Si opta por enviar por mar, la tarifa de envío es más bajo, y hay que ir a los puertos para que el liquidación en la Aduana, y tomar la mercancía desde el puerto hasta su casa por sí mismo. Generalmente se toma from10 a 30 días, dependiendo de la dirección del destinatario.

Tiempo de Manejo

Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado.

Enviar de Donde?

Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China.

política de devolución

Las compras pueden devolverse en las siguientes condiciones :: 1)Hay problemas de calidad después de abrir el paquete.; 2) Los productos son diferentes que en la lista de pedidos.; 3)Los productos se dañaron irreparablemente durante el transporte.

Detalles del pago

Forma de pago

1.PayPal (pagos en línea)
2.Tarjeta de crédito
3.Transferencia bancaria(T / T)
4.Western Union pago en línea / fuera de línea

Historial De Transacciones

Transacciones:

Legend Pro All In One 14.57in (370mm) DTF Printing System with DTF Printer (Dual Epson I3200-A1 Printheads), Powder Shaker and Dryer

CALCA DTF printing system is an automated print, powder and curing machine used to create direct to film transfers.
Equipped with 2 Epson i3200-A1 heads, 23.6in (60cm) length two - section extended drying tunnel, which makes the DTF printing system featured high speed and high efficient. more heads equal more speed.
These transfers can be heat applied to many items including shirts, hats, shoes, bags, leather, wood, denim, canvas and much more.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.

Technical Specs:
Maximum print width: 14.57in (370mm)
Maximum media width: 15.75in (400mm)
Dual Epson i3200 Printheads (CMYK - WWWW)
4 Pass 6 Pass and 8 Pass Print Resolution
Speed: 4 pass: 12m²/ h; 6 pass: 9m²/ h; 8 pass: 7m²/ h
1 Liter per color ink bottle capacity
Printing Resolution: 360 x 2400dpi; 360 x 3600dpi; 720 x 2400dpi
Print Head Cleaning: Automatic
Rewinding Function: Automatic
Machine Size: 44in wide x 83in long x 47.6in high (2100mm x 1112mm x 1209mm)
Machine Weight: 616lbs (280kg)
Packing Size: 77in x 44.5in x 44in (1950mm x 1130mm x 1124mm), 48in x 26in x 28in (1210mm x 650mm x 716mm)
Gross Weight: 770lbs (350kg)

What's Included:
CALCA Dual Head Printer (Fully Assembled)
Powder Shaker and Dryer
PC w/ CADlink RIP Software
Support: Unlimited Phone Support During Business Hours

Requirements:
A/C 110v/220v 14amps / 28amps. 2 Dedicated circuits (1 for printer and 1 for dryer), total 3000W
Climate control set to 70-75 degrees and 40 - 60% humidity
Typical learning time is 6 - 20 hours over a period of 1 week.
Vent to the outside. You’d better equip one fume extractor filter.

Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:
·DTF Printer: Adjustable suction platform, LED lighting, ink supply system with alarm and circulation function, printing head with anti collision, one button automatic cleaning function, integrated lifting type ink lamp. LCD + multi-function button panel.
· Front guide plate heating, 24in (60cm) length two - section extended drying tunnel, cold air cooling, automatic winding and touch screen.
· With touch screen display controller, simple to use.
· Perfect Print Effect, Wide Applications
· Sharp vibrant images, eye-popping print effect.
· Pattern will be washable, soft to the touch, and stretch without cracking.
· Any fabric textile cloth material, any color, any part printing.
· Upgradable Printhead System: This serial of CALCA dtf printing system is with a productivity output 200% of DTG systems. With robust and reliable Epson I3200 engine (upgradable 2 printhead 4720 options) and professionally assembled and enhanced, it produces durable and intense color prints. This next-gen printhead technology offers 20-30% improved printhead accuracy and lifespan as compared to previous versions.

The DTF Process:

DTF Printing Advantages:

Applications:
Samples:

Este producto no tiene atributos!

Preguntas y Respuestas

Specification
DTF Printer
Maximum media width	15.75in (400mm)
Maximum print width	14.57in (370mm)
Print head	2 Epson i3200-A1 heads (CMYK WWWW)
Software	Photoprint RIP Software
Media roll core diameter	3in
Suitable media	DTF PET film
Printing Accuracy	360 x 2400dpi, 360 x 3600dpi, 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Print head cleaning	Automatic
Printing speed	4pass: 10m²/h
	6pass: 6m²/h
	8pass: 4m²/h
Printing auxiliary	Front arc plate heating, rear arc plate heating;
Powder shaker auxiliary	Front guide plate heating, solidified upper drying, and cold air cooling function
DTF printer	Adjustable suction platform, LED lighting, ink supply system with alarm and circulation function, printing head with anti collision, one button automatic cleaning function, integrated lifting type ink lamp. LCD + multi-function button panel.
Working environment	Temperature 20~35°C; Humidity: 35%RH-65%RH
Relative humidity	40-60%
Operating system	XP/ Win7/ Win10
Rewinding function	Automatic
Powder Shaker and Dryer
Maximum Shake Powder Width	15.75in (400mm)
Function Item	Shake Powder Control, Dusting Control, PID Setting of Curing Temperature
Heating and Drying Function	Ceramic heating tube
Rewinding Function	Automatic
Dust control	Shake and dust’s direction and quantity control
Powder shaking assistant	Front guide plate heating, 24in (60cm) length two - section extended drying tunnel, cold air cooling, automatic winding and touch screen.
Heating method	Front guide plate heating (30~65°C)
Platform suction adjustment	Yes

6 Month Warranty
CALCA DTF printing system includes a 6 month warranty which applies to replacement of faulty materials during the first six months from the date of purchase of the machine (except for damage caused or other that does not depend on manufacturing defects). Consumable parts are excluded from the warranty, such as: print heads, dampers, inks (such consumable parts are available as spare parts if needed.)
