51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate
  • 51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate

Ver imagen más grande y otras vistas (con zoom)

51" x 35" 130W CO2 Laser Cutter with Auto - focus Function, FDA Certificate

   |   33 Transacciones

Codigo del articulo:LCM-DR-1390-130W

Buyer Protection

51" x 35" 130W CO2 laser cutter with Auto - focus Function, FDA Certificate
The machine is a laser engraver and cutter equipped with 130W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RD draw directly, also supports Core Draw and Auto CAD and other advance software.
Our laser equipment with the RECI W6 130W laser tube has two workstations, Honey Comb Table and Blade Table.

Specification
Laser Power 130W
Voltage AC110V ± 10%, 60HZ
Laser Type CO2 Sealed Glass 10.64 um
Working Area 1300mm x 900 mm (54 - 1/4" x 35-1/2")
Worktable ± 20in Electric Up & Down Aluminum Platform
Worktable Honey Comb Table
Max. Engraving Speed 300mm/s (11-3/4"/s)
Max. Cutting Speed 400mm/s (15-3/4"/s)
Engraving Thickness 0 - 10 mm (0 - 3/8") depends on material
Cutting Thickness 0 - 10 mm (0 - 3/8") depends on material
Locating Precision ± 0.01mm
Resolution Ratio ≤ 1,000 dpi
Min. Character Size 1 mm x 1 mm
Min. Character Letter 2 mm x 2 mm
Operating Temperature 41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
System Environment Windows XP / 2000 / 7 / 8 / 10
Graphic Format Supported  Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation Up To 256 Colors
Cooling Type Circulating Water Cooling and Protection System
Control System RuiDa
Rotary Device Yes
Auto-focus Yes

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified

Product details:

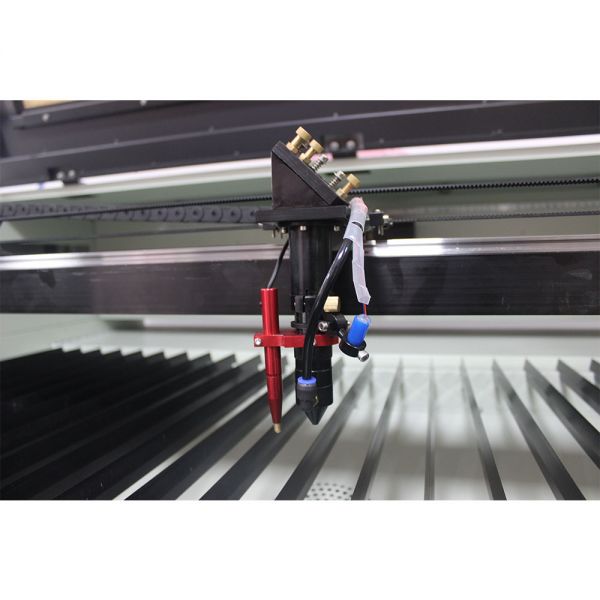

 Industrial Laser Head
Laser head with auto focus system
Auto focus should be match with up and down table. The device easily and quickly to focus according to different materials, and saving much time, more intelligent.
Air Assist
Blowing air to prevent the material being burned

Double Platforms
Both knife blade and honeycomb platforms for cutting and engraving.

RUIDA 6445 Control System
4-axis laser Engraving & Cutting
10/100M Ethernet + USB2.0 Control
Multi-language(En Ru Es Pt)

CO2 Laser Tube
We have catalyst plating in the inner wall of the laser tube. working life is up to 10000 hours. When compare to the same length tube, RECI W6 co2 laser tube is New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.

Taiwan Hiwin Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

Control box
Install high quality electrical components in China, more secure. Reasonable layout with clean and efficient design, it convenient for machine repair and maintenance.

Well-Designed Details
Switches and emergency button for better control.

Sample:
