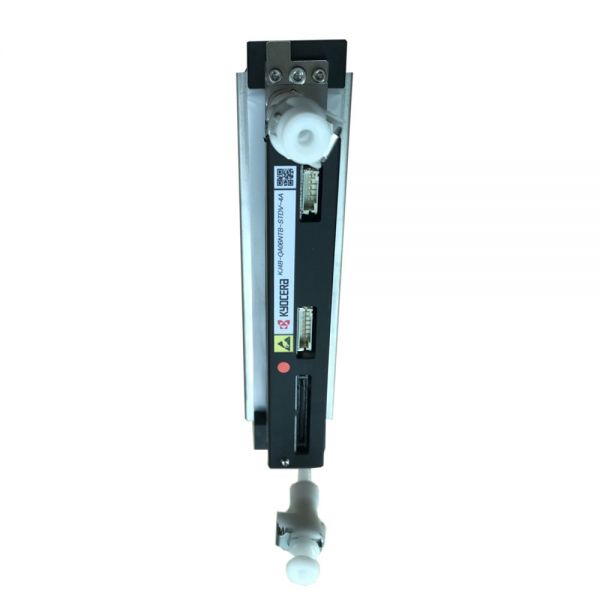

Kyocera Water Printhead KJ4B-QL - Standard
  • Kyocera Water Printhead KJ4B-QL - Standard
  • Kyocera Water Printhead KJ4B-QL - Standard

Ver imagen más grande y otras vistas (con zoom)

Kyocera Water Printhead KJ4B-QL - Standard

   |   364 Transacciones

Codigo del articulo:PRH-KYO-001

Buyer Protection

Kyocera Water Printhead KJ4B-QL - Standard

Description:
This Kyocera KJ4B-QL is designed for high speed, single-pass and multi-pass applications with water based ink, in 600 dpiwith a maximum drive frequency of 30kHz. It is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. Standard for most printers (excludes MS and EFI Reggiani models).

Specifications:
Ink Type: Aqueous Ink
Dimensions: 200 x 25 x 57.9mm
Dry Weight: 420g
Total Nozzles: 2656 (2558)
Standard Resolution: 600 x 600dpi
Max. Drive Frequency: 30kHz
Minimum Drop Volume: 5pl
Maximum Drop Volume: 12pl
Print Width: 108.25mm
Print Speed: 76.2m/min
Typical ink viscosity: 5.0-6.0 mPa

Compatible Printers:
Aeoon Kyo / Kyo Ahp
Atexco Model H / X / X Plus
Atexco Vega One / Vega-9180DI / Vega-iX3 / Vega-X5
Xerox Rialto 900

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer s responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don t accept any return and refund once the printhead is installed on the machine.
