98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System
  • 98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System

Ver imagen más grande y otras vistas (con zoom)

98" x 51" (2500mm x 1300mm) CNC Router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System

   |   26 Transacciones

Codigo del articulo:CNCR-LD-6000

  • Precio Unitario : $ 41,379 - 45,977/set   (Aviso de Descuento)

    Precio de Mayoreo :
    • Cantidad (sets) Descuento Amount/set
      1. 1 0% $45,977
      2. 2 - 3 5% $43,678
      3. 4 - 8 10% $41,379
    • ¿Necesitas más cantidades, por favor haga clic en Pedido al mayoreo
    • Por Favor Eliga el Tipo
    US Warehouse China Warehouse
  • Cantidad: set(s) Costo Total : $45,977

  • Peso de Envio: 7372.3lb (3351.04kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to Cart inquire
Buyer Protection

98" x 51" (2500mm x 1300mm) cnc router Machine, with Italy 9.5KW Spindle(ATC) and Vacuum System

DETAILED CUTTING INFORMATION OF CNC ROUTER MACHINES
No. Material Thickness range(mm) Thickness(mm) Speed(m/min) Remark
1 acrylic ≤ 50mm 10mm 12
20mm 6-8
30mm 4-6
50mm 2-3
2 MDF ≤ 50mm ≤ 20mm 25
30mm 15
50mm 5
3 aluminum ≤ 40mm ≤ 5mm 10
10mm 5
20mm 3 cutting by layer
30mm 2
40mm 1
4 copper ≤ 10mm ≤ 5mm 2
10mm 1.5
5 alucobond ≤ 20mm 20mm 15
6 bakelite plate ≤ 20mm 20mm 5
7 ABS plate ≤ 20mm 20mm 5

Features:
· Service life of machine up to a maximum of 20 years.
· The machine comes standard with 4 imported knife, automatic tool change, save manual tool changing time, improve work efficiency
· Suction pressure integration platform, 7.5KW vacuum pump equiption, the pump is assembled with relief valve and silencer, fix well material, In the working process the material does not vibrate, so it can improve the cutting surface finish.
· The double-check lathe bed pass anneal and heat treatment, to ensure that the use of solid shape.
· A world-class transmission YASKAWA servo drive motor with high speed and precision drive achieve a maximum speed of 5000 / rpm, also uses a high-resolution serial encoder (16,17bits) to improve the positioning accuracy. Use D Q axis conversion current control system, torque control precision (repeatability) also increased by ± 5% to ± 2%.

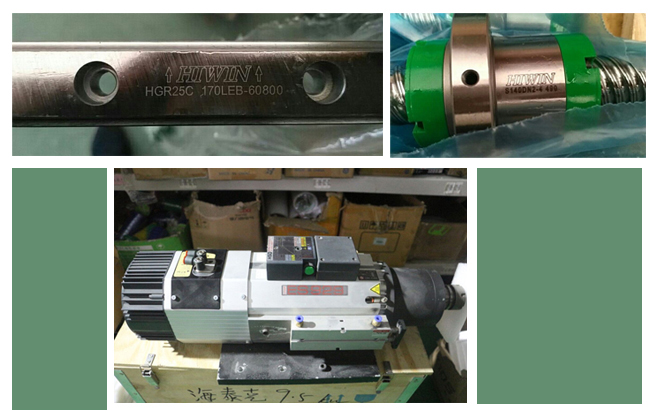

· PMI 3220 XY axis adopt imported ballscrew with high precision and smooth transmission to improve the processing finish.

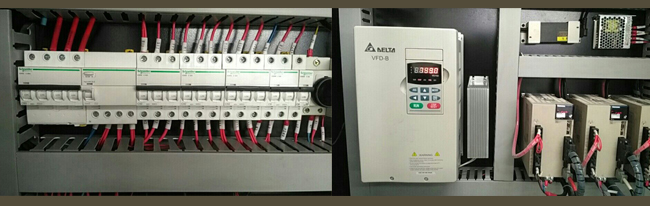

· Excellent electromechanical design and other electrical Accessories with famous international brands.
· Gantry of fixing structure, transom fixed, moving platform, adopt imported gantry milling and planer finishing, improve the overall accuracy of the machine assembly.
· It has a breakpoint, continued carving capabilities.
·Intelligent protection work table to prevent the wrong operation and other possible surface damage. Intelligent processing cross-border protection, to prevent mechanical collision phenomenon caused by the design surface over the processing area.


Applicable materials:
Acrylic, aluminum plate, copper plate, insulation plate, Bakelite plate, honeycomb plate, ABS, PVC, hardwood, organic board

Main industries:
·Transformer factory, factory of insulation material, processing laminated wood and laminated parts
·Train interiors, airplane interiors, automotive interiors, rail and vehicle equipment, aluminum curtain wall ·Cutting, carving, chamfering on mini light letters and acrylic to achieve mirror effect. Processing all kinds of acrylic panels (TV,DVD and etc.). After processing it no needs to polish. ·Wood furniture, cabinet doors, acrylic products, exhibition, plastic plate cutting, camber plate cutting ·GRG, GRC, Indoor and outdoor gypsum processing
