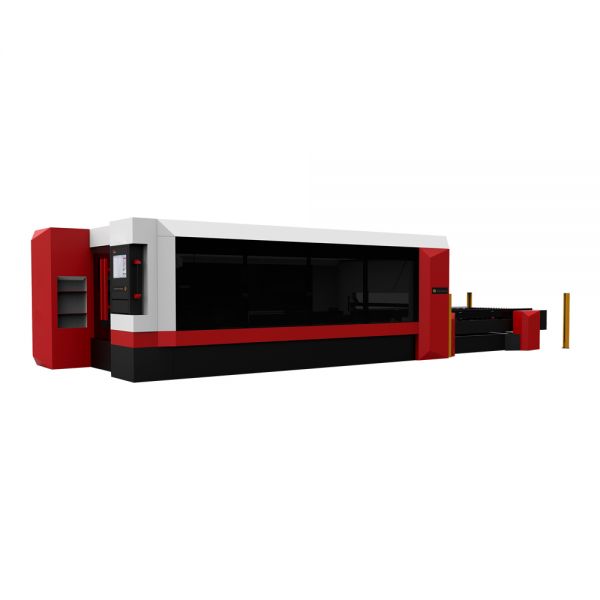

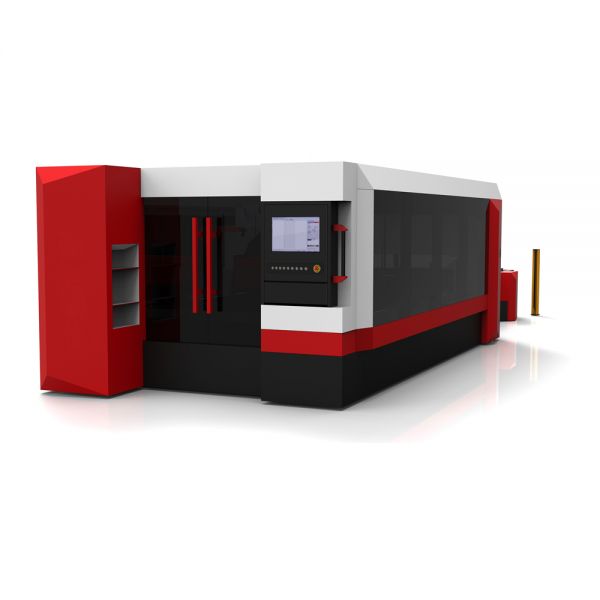

59" x 118" 1530 2000W IPG Fiber Laser Cutter, with Change Table, Full-protection Structure
  • 59" x 118" 1530 2000W IPG Fiber Laser Cutter, with Change Table, Full-protection Structure
  • 59" x 118" 1530 2000W IPG Fiber Laser Cutter, with Change Table, Full-protection Structure
  • 59" x 118" 1530 2000W IPG Fiber Laser Cutter, with Change Table, Full-protection Structure

Ver imagen más grande y otras vistas (con zoom)

59" x 118" 1530 2000W IPG Fiber Laser Cutter, with Change Table, Full-protection Structure

Germany IPG Fiber laser generator, Pneumatic Loading Table, Wireless remote control handle, updated software

   |   253 Transacciones

Codigo del articulo:LCM-XJG-150300JH-2000C

  • Precio Unitario : $ 170,060/set   (Aviso de Descuento)

    • Por Favor Eliga el Tipo
    IPG500W IPG1000W IPG2000W N-light700W
  • Cantidad: set(s) Costo Total : $170,060

  • Peso de Envio: 10357.7lb (4708.04kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to Cart inquire
Buyer Protection

Standard collocation of IPG 2000W fiber laser generator YLS-2000, realizes low operation and maintenance cost and maximum longer-term investment returns and profits Cut max 8mm stainless steel, 16mm mild steel.
Adopting double gear rack closed-loop system and America Delta Tau Systems Inc PMAC Controller, enable high processing accuracy and high working efficiency during high speed cutting.
Enclosure design meets CE standard which realizes reliable and safe processing. Change table is saving time for material uploading and unloading and further promotes working efficiency.


Equipment Character and Technology advantage
• Using Imported Optical components, good beam quality, high efficiency electronic-optic conversion.
• High ratio between quality and price, good reliability, long-term stability
• High cutting precision, can meet all requirement of sheet metal processing technology.
• Focal length automatic follow with cutting head, even if the material surface roughness and also can ensure cutting quality.
• Kerfs smooth, perfect, no need clean.
• Low operation cost, all material can cut by air only (If need faster cutting speed, using Oxygen).
• Collecting trailer with wheel, light weight design, easy to clean material
• Powerful smoking device , solve question of metal processing dust and bad environment
• Using Smart mechanical mechanism, compact structure, no need take up large area.
• Imported Germany Rexroth liner guide, YASKAWA servo motor drive, High precision ABBA ball screw, let the machine work perfect.
• All screw and guide rail and other motor with auxiliary lubrication system together, use centralized supply lubrication way, effective ensure lifetime and working precision on each motor.
• Use USA PMAC CNC control software , which can realize 8 axis multi-control , compatible with the full closed loop design, which can position the correct real moving distance, then make compensation , even after long-term using , the machine can work with high precision.

2000W IPG Fiber Laser Cutting Capacity:

Material Cutting Limit
Carbon steel 16mm (good quality)
Stainless steel 8mm (good quality)


2000W IPG Fiber Laser Cutting Speed Chart:

Thickness Carbon Steel Stainless Steel Aluminum
  O2 Air Air
1.0mm 450mm/s 400-450mm/s 300mm/s
2.0mm 120mm/s 200-220mm/s 130-150mm/s
3.0mm 80mm/s 100-110mm/s 90mm/s
4.5mm 40-60mm/s
5mm   30-35mm/s
6.0mm 35-38mm/s 14-20mm/s
8.0mm 25-30mm/s 8-10mm/s
12mm 15mm/s
14mm 10-12mm/s
16mm 8-10mm/s


Equipment Main Components:

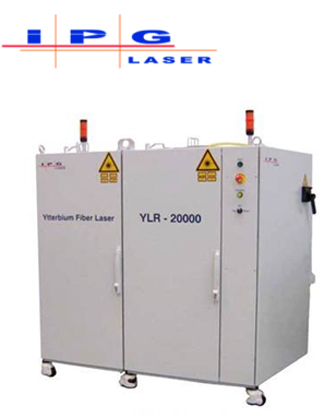

Use Germany IPG YLS2000 Fiber laser generator , IPG as the top laser generator supplier in the world , the electrical-optical conversion rate is up to 25%~30%
The lifetime is more than 100,000hours. Long lifetime and high working stable performance

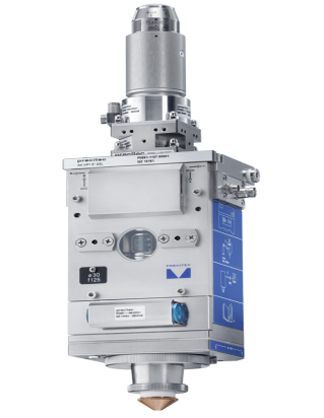

1.Use Germany Precitec Laser cutting Head
2.Non-contact capacitor automatic tracking system, it automatically adjust the best focal distance, avoid of material scarp, ensure the best cutting precision
3. Full sealed design, ensure long lifetime of mirrors.
4.Distinctive scale identification, easy in adjusting focus according to different materials
YASKAWA Servo Motor can correct the cutting path.
Cooperate with full closed loop system to ensure the cutting accuracy.
 Double Germany Atlanta Rack and Pinion in Y axis moving system in Control.
Germany ball screw and Germany Rexroth linger guide in X axis. Top brand mechanical laser parts, which realize high processing speed up to 72M/min.

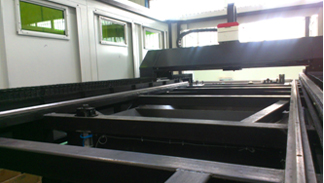

The machine working table is weld by 12mm square mild tube, which load capacity is 700KG when machine in working process.
Through twice age process and annealing treatment, protect body will not deformation.

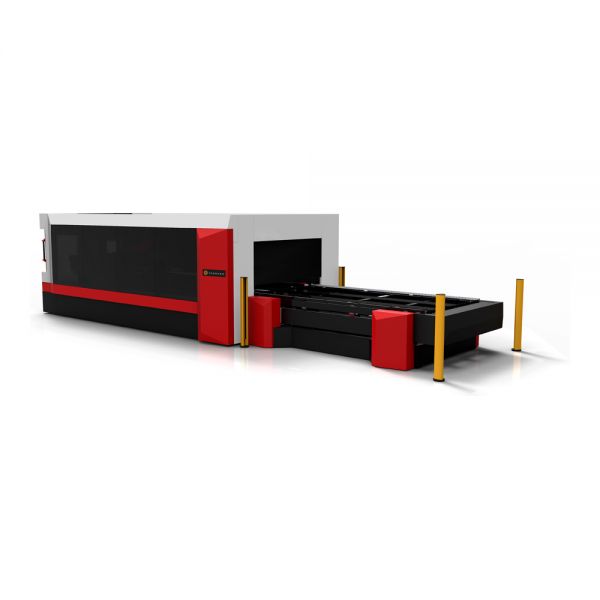

Two Changing working table , which save the labor cost and time to load materials, improve the machine working efficiency
When the two tables finished changing, the two pneumatic devices on each side will lock the table to guarantee the table won’t excursion.

Germany Beckhoff control system
Open software CNC system based on PC, the user’s special technology can be flexibly integrated into the control system.
For complex multi-axis and multi-channel coordinated control
Integrated, intelligent. High speed ,high precision:
Adopt seamless integration industry special cam software; it’s improving the whole efficiency of the use.




 1. Spanish Lantek nesting software: fully integrated in one single program: designing a part, importing, nesting (automatic or manual), generating the cut (automatic or manual), generating the CNC etc. will be achieved from the same program without switching.
2. Large library of parametric parts. All part info is saved and organized in databases so that users can easily locate the part and sheet required.
3. Lantek Expert calculates cutting time and cost of the entire sheet.

Equip with Proportional Valves; ensure the equal gas flow, which realize the clean cutting performance on the metal sheet surface.
It used Japanese SNC Proportional valves tech, belongs to software control.

 Efficient and reliable centralized lubrication system can automatically add oil to machine table and mechanical parts at any time.

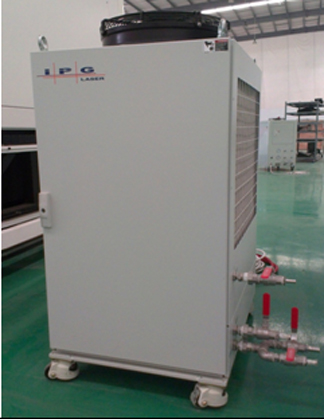

Germany IPG cooling system, compatible with IPG generator, keep constant temperature in different circumstance, ensure the fiber source working in best state

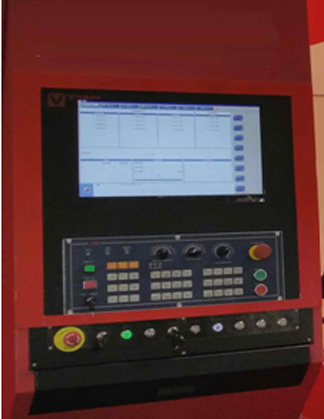

Controller table, main Control Button electrical control cabinet. user friendly, easy to operate
Wireless remote control handle, to realize the function of zero home, frame, start/pause, pre-adjust, X, Y, Z axis movement. It is more convenient for practical use. It is optional for Y axis rotary device, which use for cutting round tube with diameter from 15mm~80mm standard.


Equipment Configuration:

Configuration Name Details Note
Pulse Laser Power Supply system        Use Professional High frequency pulse laser cutting Power supply Power Invariability, stable performance
Fiber laser system        Use IPG/COHERENT Fiber laser source Top quality laser source, more powerful and stable electronic -optical conversion up to 30%
Laser light path system Use full sealed optical system Sealed Optical system, ensure
High laser energy and mirror lifetime
Positioning system Using P-MAC control and full closed loop design indicating laser accuracy Automatically cutting compensation, with long time cutting accuracy guarantee
Automatic Tracking system Captive non-contact automatic tracking system Automatic adjustment cutting focus length, ensure the cutting quality
Cutting Head System Use Unique OEM Precitec Laser Cutting Head Use Unique OEM Precitec Laser Cutting Head
Lubrication system Centralized supply system Supply lubrication oil to working table and guide rail
Driving and moving system all us Japan YASKAWA servo motor drive and Use famous Taiwan ABBA brand ball screw and Germany Rexroth guide rail, Germany Atlanta Rack and Pinon high speed, large torgue stable and reliable performance, high precision, convenient, maintenance, longer lifetime
CNC system PC control, CNC laser cutting professional USA PMAC cutting software Programmable Multi-Axis Controller, compatible with closed -loop magnetic rule system, which ensure the high precision
Support For Graphic format Compatible CAD, CORELDRAW, and other mapping software, support DXF/DWG/PLT graphics format Effective ensure lifetime and working precision on each motor unit


Comparison with Different Types of Lasers
Laser Cutting Machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed, high accurate, high efficiently cutting. Its products have smooth edge, small kerf width and little heat effect.



  Fiber laser CO2 laser

Electro-optical conversion efficiency

 30% 10%

Maximum output power

 50KW 20KW

BPP(4/5KW)

 ＜2.5 6

Semiconductor pump life

 ＞100,000 NA.
Floor space (4/5KW) ＜1s quare meter 3 square meter

Maintenance

 No need Need

Flexible processing

 Very suitable No suitable

Stability

 Optimum Good

Absorption rate % - steel

 35 12

Absorption rate %-aluminum

 7 2

Component required replace

 High brightness broadband single core junction semiconductor laser, pumping more than 100000 hours. If one of the semiconductor is damaged, does not affect the normal laser work, just laser power won’t reduced, because each semiconductor pump source independent of each other. Laser need gas supply and reflection lens replace when working


Laser Metal cutting Sample:

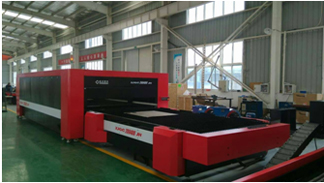

Factory real photos:


International Certificate:
In metal cutting industry, the metal process group have developed small and medium size metal cutting machine, large area laser cutting machine and combine metal cutting and marking functions in one machine, these three serial 10 type of machine have widely used into Sign marking, electronic switch marking, sheet metal cutting, cabinet producing, spectacle frame cutting, metal craft, machine tools, car, mobile, watch, jewelry industries. Most of the product passed CE and FDA certification, and export to Europe, America and Asia countries.
