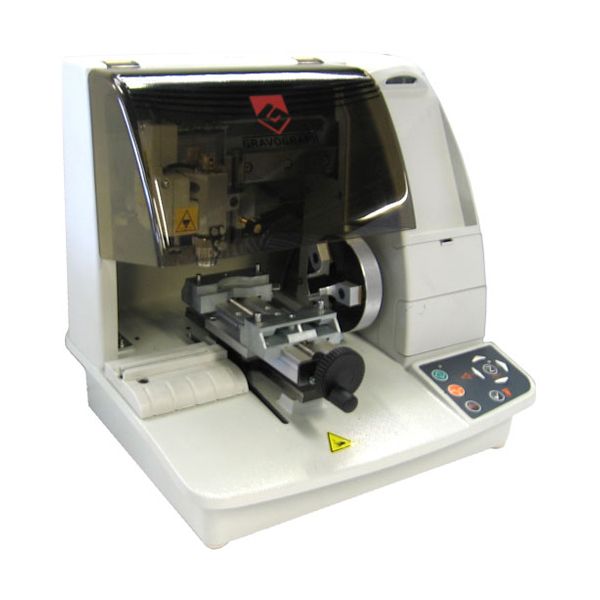

Gravograph M20 Jewel Mechanical Engraver, The Complete Jewelry Solution for Flat and Ring Engraving
  • Gravograph M20 Jewel Mechanical Engraver, The Complete Jewelry Solution for Flat and Ring Engraving

Ver imagen más grande y otras vistas (con zoom)

Gravograph M20 Jewel Mechanical Engraver, The Complete Jewelry Solution for Flat and Ring Engraving

   |   22 Transacciones

Codigo del articulo:CNCR-M20JEWEL

Buyer Protection

Features:
• Compact and quiet, can easily be set up in your shop, office or retail establishment.
• Complete system includes engraving machine and software, tools, Accessories and tutorial.
• The machine is delivered with its software Gravy style Quick Click™ that will permit you to personalize your items thanks to its fonts and functions.
• Easy clamping of plates and other objects with self-centering vice.
• Depth nose allows for constant engraving, particularly on uneven surfaces.
• Open access to the object to be engraved.
• Integrated vice and pen attachment provides quick change-over and increases productivity.
• Error-free engraving lets you simulate your job before you engrave using the integrated red laser pointer - no measuring required.
• Effortless Cutter Setup - Integrated Automatic Z reference function included standard.

Description:
A compact machine, the M20 is easy to store, however limited your workspace. Thanks to its user-friendly interface, even first-time engravers will get to grips with the machine in no time. Achieve high quality, error-free engraving in just a few minutes. The machine is computer-driven via Grave style Quick Click, comprehensive, user-friendly software engineered for the needs of the jewelry market (including a wealth of different fonts and advanced text management tools.) In total synergy with the M20 Jewel, this software enables you to select the type of object to be engraved (a ring, medal or pen) and position it on the machine – quickly and easily.
Creativity : The customer will be able to choose from a range of over 20 fonts when composing the text in Quick Click. These are a standard feature of the software. Versatile, Productive... No setting and adjusting required.

Ring engraving characteristics:

Inside diameter : 12 - 24 mm
Outside diameter : 12.5 - 27 mm
Ring engraving characteristics width :
Exterior engraving width: 1-20 mm
Interior engraving width: 1-9 mm
Overall machine size : 345 x 315 x 305 mm
Engraving area: 100 x 100 mm

Specification:

Overall machine size: 345 x 315 x 305 mm.
Weight machine: 11.5 kg.
Engraving area: 100 x 100 mm.
Z stroke : 30 mm.
Clearance (nose to bottom of vice): 40 mm.
Spindle:
- Diameter 3,17 mm hollow shaft  (GravoGraph patented innovation)
- Brushless motor 20000 rpm
- Spindle pressure adjustment
Pointn shoot function:
- Engraving area automatically defined by red laser beam pointer.
Self centering vice
Max opening capacity: 105 mm
Flatness: 0.1 mm.
Repeatibility: 0.05 mm.
Pen attachment
- Maximum diameter: 20 mm
Noise level:
- Standby: LAeq = 51dB(A) (±1)
- Engraving: LAeq = 69dB(A) (±2)
- Peak in engraving: LpCpeak = 89dB(C)

Materials M20 JEWEL
Acrylic YES
Aluminum YES
Carbon YES
Stainless steel/ steel YES
Glass NO
Gold/ silver/ platinum YES
Gravoply YES
Carbide YES
Wood YES
Plastics YES
Leather YES
Brass YES
PVC YES
Titanium YES
Application M20 JEWEL
Identification plates YES
Funerals plates YES
Cutlery NO
Braille NO
Data Matrix™ code NO
Electronic items (cell phone, MP3, USB key, laptop, etc.) YES
Electronic parts YES
Photo engraving YES
Milling NO
Front panels NO
Signage NO
Gift items YES
Large signage NO
Control panel NO
Medals YES
Personalization YES
Trophies NO
Plates for cups YES
Rubber stamps NO
Promotion YES
Rings NO
Jewels YES
Pens YES
Parts marking NO
Cooking plates NO
Pet medals YES
Sign plates YES
Watches YES
Weapon marking NO
Warning notices YES
Ad items YES
Cylindrical items NO

Application:
• Medals
• Rings (inside and outside)
• Bracelets
• Pens
• Pieces of jewelry
