Spectra Galaxy JA 256 / 50 AAA Printhead
  • Spectra Galaxy JA 256 / 50 AAA Printhead

Ver imagen más grande y otras vistas (con zoom)

Spectra Galaxy JA 256 / 50 AAA Printhead

The delivery lead time is 10 days.

   |   463 Transacciones

Codigo del articulo:PRH-SPE-012

Buyer Protection

The delivery lead time is 10 days.

Description:

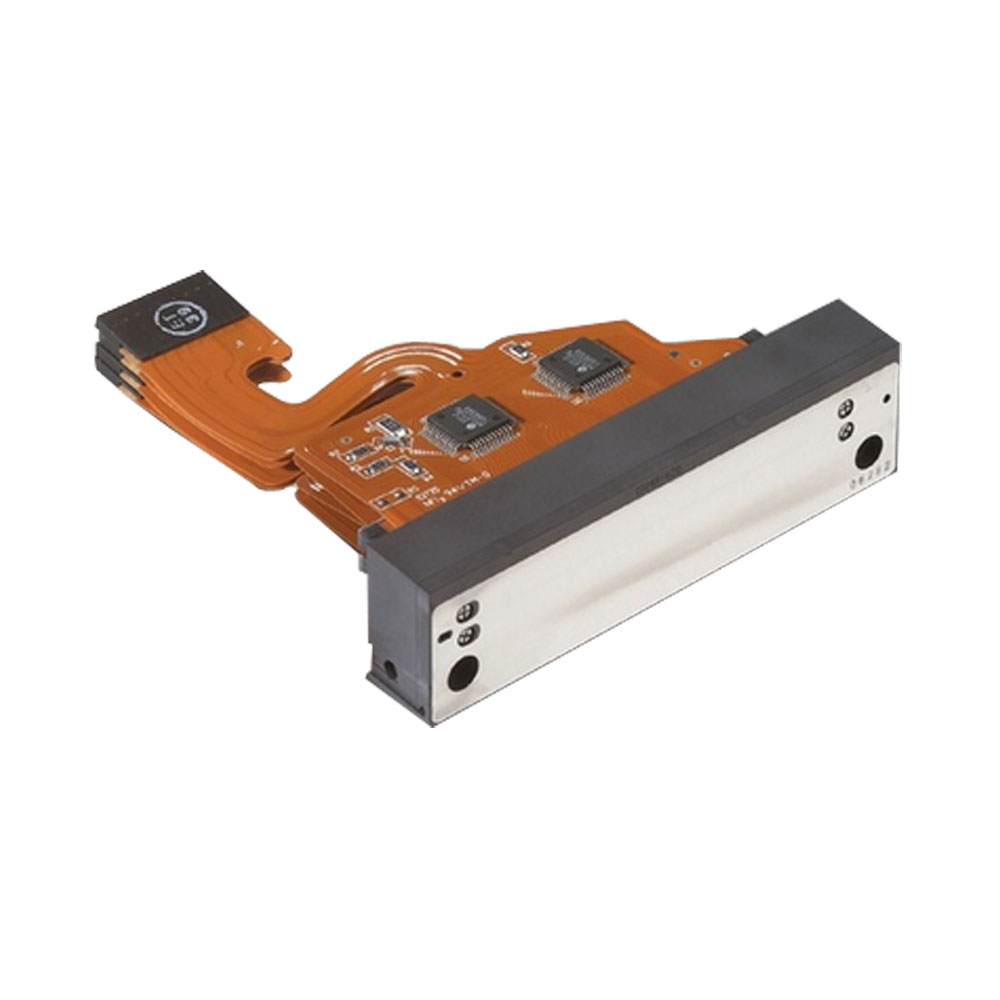

The Spectra Galaxy JA 256 / 50 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 600 dpi.
Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.

To be used with: Agfa Anapurna XL2, Dilli Neo Venus UVV-2506 (GW), Dupont Cromaprint 22UV, Keundo SupraQ 3300-UV, VUTEk PV200 / 600 (only for white ink) / PV320 / 400, PrismaJet P22, Teckwin TeckUV S2400 / TeckUV S3000, Inwear L3508G, Buskro BK1700
Remarks: original

Specifications:

Model
PRH-SPE-012
Technology
Piezo Electric
Max. Resolution
600 dpi
Cal. Droplet Size
50 pico litre
Adj. Range for Droplet Size
45-55 pico litre
Tot. Amount of Nozzles
256
Nozzle Spacing
254 microns
Nozzle Diameter
36 microns
Firing Frequency
20 kHz
Operating Temperature
up to 90°C


Attention:
1. The Printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.

  • Todo
  • Guia
  • Descripcion del articulo
  • Envio
  • Pago
  • Otro
Pregunta
Hello, do you have the delivery to Russia? Thanks
By la_perla from Luxembourg Oct 11,2018
Respuesta
hello my friend ,yes we have,we can deliver head by EMS，any more question ,please email me :overseas07@sign-in-china.com
Por Sign-in-china Oct 12,2018
Pregunta
Hello ! Do you have spectra galaxy 256/80 picoliters I want to order this one.
By konasova from Luxembourg Nov 29,2016
Respuesta

Hi,there,thanks for your question.we do have the spectra galaxy 256/80 picoliters available for sale ,and I have had my colleague,your service specialist followed an email to you for quote you the price of it .more questions ,email me please :overseas08@sign-in-china.com


Por Sign-in-china Nov 30,2016
Pregunta
I want to buy Spectra Galaxy JA 256/50 AAA. = 1 pcs. I want to Payment by LC you OK. Please let me. Thank you. Srithep
By srithep.p from Syria Jul 27,2016
Respuesta

Hi,thanks for your question. sorry to tell you that we as an online  shopping website ,do not accept LC payment method .and there are are many other payment options which are available  for an much easier and faster online purchase .you can choose pay by Paypal,TT,west union,creditcard ...,which can have the transaction much easier and faster as well as more safety. I have sent you an email to offering you more details about it ,please check an email from overseas08@sign-in-china.com


Por Sign-in-china Jul 28,2016
Pregunta
Hi, do you have this item in stock and how long is shipping to Sydney?
By dan from Sweden May 16,2016
Respuesta
Hello, thanks for your question, here can I know the quantity you need? Here is my email address: overseas01@sign-in-china.com
Por Sign-in-china May 16,2016
Pregunta
Hi im intersting on this speactra heads let me know if thay are brand new what is the warranty and what about terms of payment thanks avi
By avi from Paraguay May 29,2015
Respuesta
Hello,thanks for your questions,we do confirm this printhead is original and brand new with original package,About warranty policy,pls check the "Attention" information on the webpage,any more questions,email me:overseas01@sign-in-china.com
Por Sign-in-china May 29,2015
