Spectra Galaxy JA 256 / 30 AAA Printhead
  • Spectra Galaxy JA 256 / 30 AAA Printhead

Ver imagen más grande y otras vistas (con zoom)

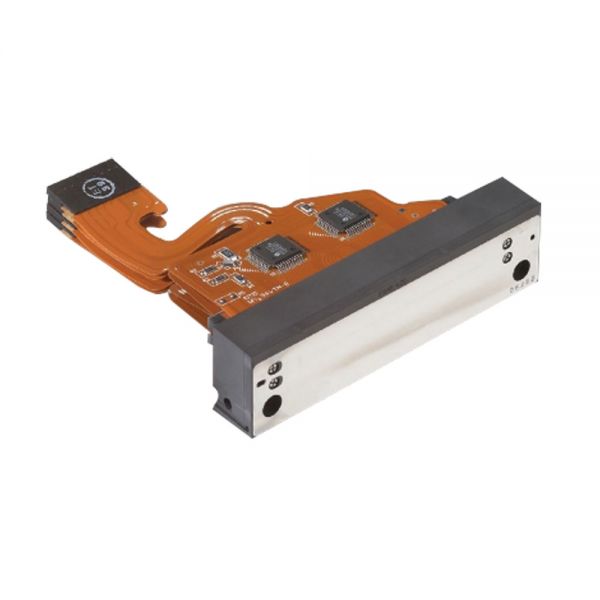

Spectra Galaxy JA 256 / 30 AAA Printhead

The delivery lead time is 10 days.

   |   571 Transacciones

Codigo del articulo:PRH-SPE-011

Buyer Protection

The delivery lead time is 10 days.

Description:
The Spectra Galaxy JA 256 / 30 AAA Printhead is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi.
Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
To be used with: Dilli Neo Jupiter 1006 / Neo Marker 0301 / Neo Deluxe UVD-2506(W) / Neo Deluxe UVD-3206 / Neo Plus UVP-1606(W) / Neo Plus UVP-2506(W), HP Scitex FB6100, Inca EAGLE H / Columbia, NUR Tempo Q, VUTEk PV200 / 600 / PV180 / 600, PrismaJet P22, Teckwin TeckUV S2400 / TeckUV S3000, Inwear L3508G, Buskro BK700
Remarks: original

Specifications:

Model
PRH-SPE-011
Technology Piezo Electric
Max. Resolution Up to 900dpi
Cal. Droplet Size 28 pico litre
Adj. Range for Droplet Size 25 - 30 pico litre
Tot. Amount of Nozzles 256 (128 per slice)
Nozzle Spacing 254 microns (0.010 in.)
Nozzle Diameter 36 microns
Firing Frequency 20 kHz
Operating Temperature up to 90°C


Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.



  • Todo
  • Guia
  • Descripcion del articulo
  • Envio
  • Pago
  • Otro
Pregunta
Hi, We need two of Galaxy JA256/30 AAA. Do you have the available stock now? If not, when is it possible?
By Suh Jul 19,2023
Respuesta
Good Morning, JS Suh , The leading time is 1 month after we get the payment.
Por Sign-in-china Jul 20,2023
Pregunta
Hello, interested in 1pc of Spectra Galaxy JA 256/30 AAA printhead. Do you have it available now?
By info from Norway Dec 24,2019
Respuesta
Dear Customer, Thank you for your question. We do have it in stock,if you need it,pls make an order online. Regards
Por Sign-in-china Dec 30,2019
Pregunta
Is the item new brand? We need 2 pcs, are they available now?
By supply from Norway Mar 22,2018
Respuesta
hi my friend ,it is new brand ,now this head is out of stock ,your service manager will inform you once we get it in stock ,any more question ,please email him:overseas22@sign-in-China.com
Por Sign-in-china Mar 23,2018
Pregunta
Hi. Please inform me about shipping my order.
By supply from Norway Jul 08,2016
Respuesta

 Thank you for your question ! Your order was shipped by FedEX on 11th July , the tracking No. is FedEx:783551311679 . Have a nice day !


Por Sign-in-china Jul 12,2016
Pregunta
Hi I am interested in purchase of 4 pcs of New Spectra Galaxy JA 256/30 AAA Printhead (payment with PayPal). But first I would like to ask some questions: 1. Can I have more discount from the price mentioned in website. 2. What is the transportation you use to send the package ? 3. Do you have that amount in your stock for fast delivery ? Regards
By supply from Norway Jan 19,2016
Respuesta
Hello,thanks for your questions,1.you still have membership points in your account, you can also use coupons as a discount. 2. We usually send by FedEx.3.The lead time will be 3-5days. At last,any more questions or requirements,you can email me：overseas01@sign-in-china.com
Por Sign-in-china Jan 19,2016
