Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004
  • Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004
  • Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004
  • Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004
  • Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004

Ver imagen más grande y otras vistas (con zoom)

Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004

   |   421 Transacciones

Codigo del articulo:PRH-RICOH-008

Buyer Protection

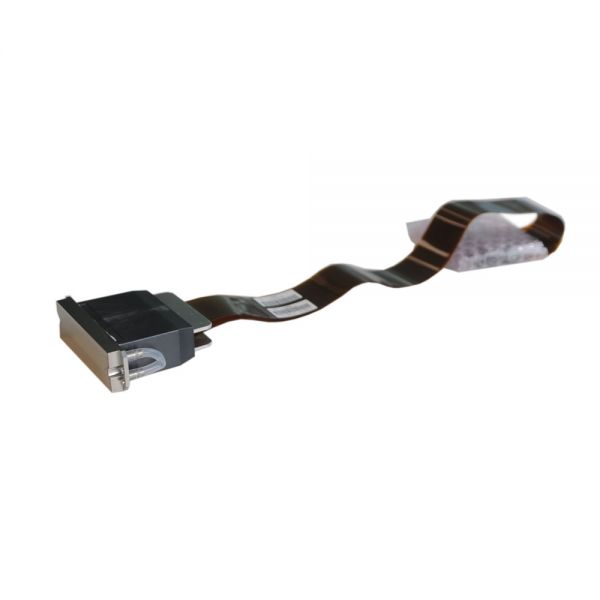

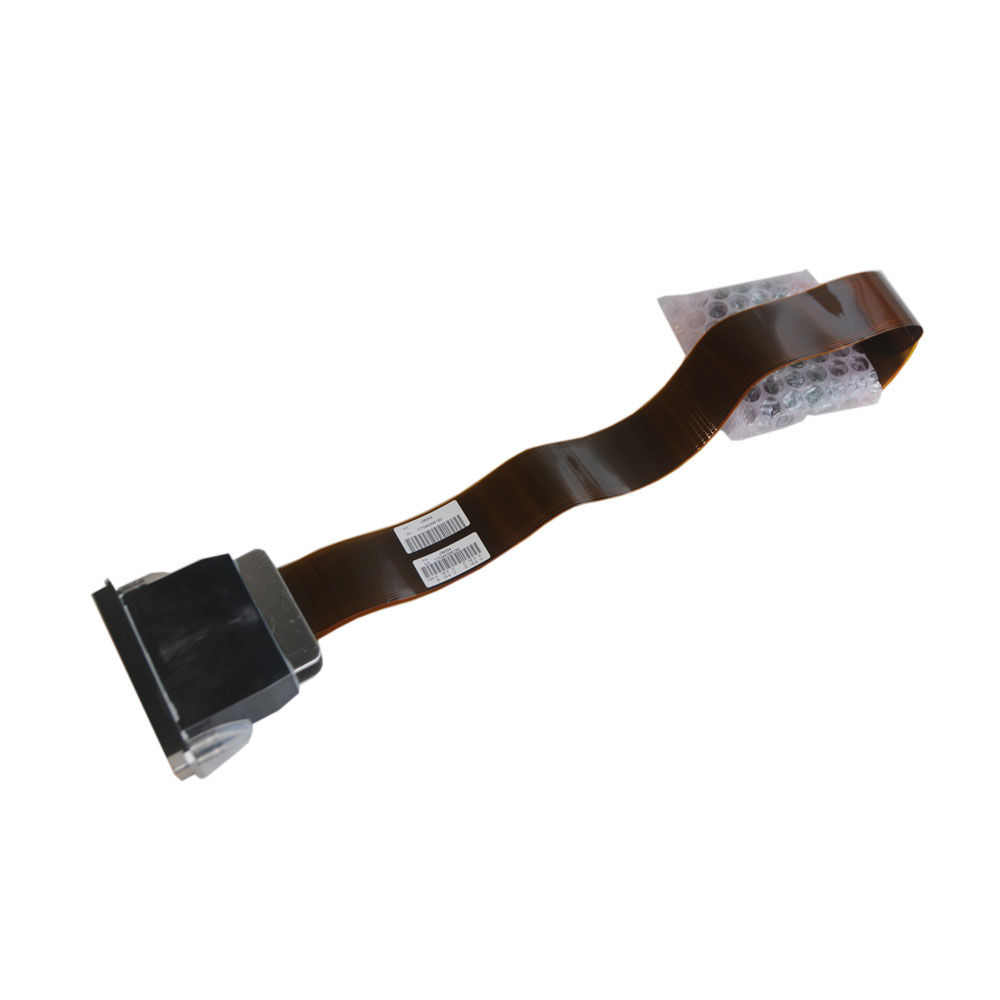

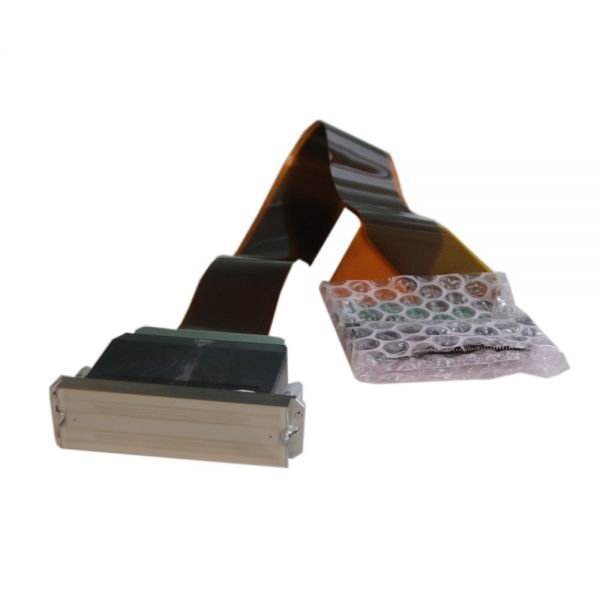

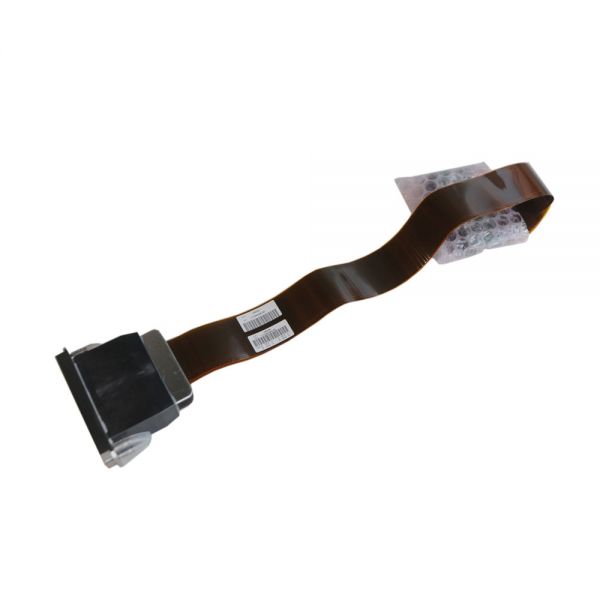

Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (500mm, Two Color, Long Cable) - J36004
Manufacturer: Ricoh
The new number is J36004 replacing N221414D /221414F /221414K /221414P /221414C

Description:
This Ricoh GEN5 water printhead is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles.
This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.
Specifications:
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle
Printer Compatibility:
ATP Color DFP1320, DPP740 G5
DIP J4
Hollanders ColorBooster 230, 250
MTEX Turbo Sub

  • Todo
  • Guia
  • Descripcion del articulo
  • Envio
  • Pago
  • Otro
Pregunta
Is the head original water base and is there any guarantee on it ??
By luca from Guadeloupe Jan 11,2019
Respuesta

 Thanks for your inquiry, this printhead is Water-based, 52cm Long with The Head, 39cm Long for The Cable, all printhead are original Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine. more question email me overseas22@sign-in-china.com


Por Sign-in-china Jan 14,2019
Pregunta
Hello, Total length of the printhead is 500mm?? or length of flat cables is 500mm?? thanks
By Robert from Lithuania Aug 07,2018
Respuesta
hi my friend ,the length of flat cable on head is 390mm,any more question ,please email edwin:overseas22@sign-in-china.com
Por Sign-in-china Aug 07,2018
