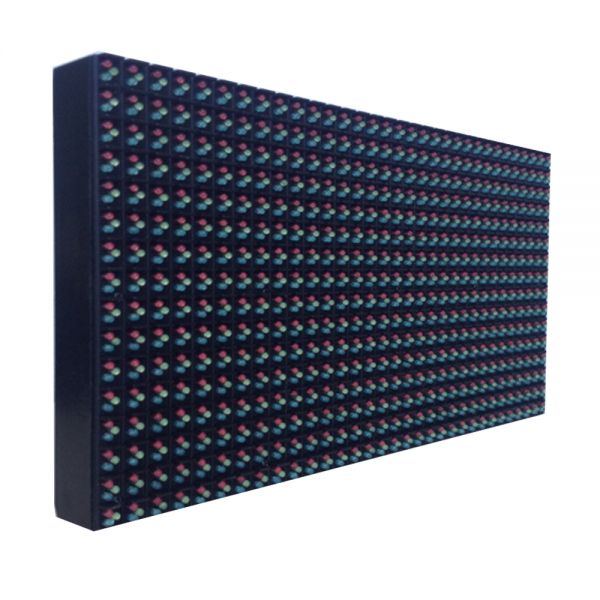

Outdoor LED Display P8 Medium 32x16 RGB LED Matrix Panel(10.07" x 5.03" x 0.5")

Ver imagen más grande y otras vistas (con zoom)

Outdoor LED Display P8 Medium 32x16 RGB LED Matrix Panel(10.07" x 5.03" x 0.5")

Codigo del articulo:LED-DYB-HJY-P8-2

Precio Unitario : $ 39.54 - 49.42/pc (Aviso de Descuento) (Tiempo entrega 8-15 días)
Precio de Mayoreo :
- Cantidad (pcs) Descuento Amount/pc
- ¿Necesitas más cantidades, por favor haga clic en Pedido al mayoreo

Cantidad: pc(s) Costo Total :
USD $494
Peso de Envio: 1.2lb (0.56kg) Flete
item añadido al carro

0 total en su carro, Total del carrito: $

Related Products

- NovaStar MSD300 Sending Card
- $184 / pc
- Buy Now >>

El vendedor asume toda la responsabilidad de este listado

Envío y manipulación

Cantidad: Pais:

1.Si opta por enviar por expreso, se puede ver que el honorario del envío es un poco alto, pero puede entregar a su puerta dentro de 3-5 días, sólo tiene que hacer el pago y esperar.
2.Si opta por enviar por mar, la tarifa de envío es más bajo, y hay que ir a los puertos para que el liquidación en la Aduana, y tomar la mercancía desde el puerto hasta su casa por sí mismo. Generalmente se toma from10 a 30 días, dependiendo de la dirección del destinatario.

Tiempo de Manejo

Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado.

Enviar de Donde?

Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China.

política de devolución

Las compras pueden devolverse en las siguientes condiciones :: 1)Hay problemas de calidad después de abrir el paquete.; 2) Los productos son diferentes que en la lista de pedidos.; 3)Los productos se dañaron irreparablemente durante el transporte.

Detalles del pago

Forma de pago

1.PayPal (pagos en línea)
2.Tarjeta de crédito
3.Transferencia bancaria(T / T)
4.Western Union pago en línea / fuera de línea

Historial De Transacciones

Transacciones:

Product advantage:
1. Super bright LED and plastic quality
2. High contrast can achieve good results
3. Weight is easy to install and remove
4. Single point, single light maintenance, low cost
5. Constant current mode is used to drive LED, even light, low power consumption.
6. Beads glue dispersing agent (DP), surface spray. The point light source into surface light source, to ensure consistency of better visual effect, more plump, soft.
7. 100% new material support rubber shell (PPA), seal

LED parameter

Color	LED Package	Brightness	Wave	Voltage	Test condition
R	DIP246	800-960	620-624nm	1.8-2.4V	25°C 20mA
G		1500-1800	518-521nm	3.3-4V	25°C 20mA
B		360-440	468-471nm	3.3-4V	25°C 20mA

Screen parameters

Type	P8
Pixel pitch (mm)	8
Pixel density (dots /m2)	15625
Pixel structure	1R1G1B
LED Package	DIP246
Module Size (mm)	256X128
Module Resolution (dots)	32X16
Number of modules per square meter (PCS)	30.5
Minimum viewing distance(m)	≥8
Brightness (cd/m2)	≥5000
Angle of view (degree)	Horizontal:105±8°；vertical: 50±10°
Scanning mode	1/4 Scan constant current drive
Module interface	HUB08
Input voltage (DC)	4.8-5.5V
Maximum power (w/m2)	1170
Average power (w/m2)	350-580
Maximum current （A）	7.68
Module weight (g)	551
Gray level	Recommended level 16384
Control mode	Computer control, video synchronization, real-time display
Effective communication distance without relay	Non shielded twisted pair transmission distance of 100 meters, the maximum transmission of up to 130 meters
Frame changing frequency	≥ 60 rames/ second
Pixel out of control rate	<0.0001（LED Industry standard: less than 3/10000）
Display color number	64G color (4096 gray levels under the condition of the number of colors)
Module brightness uniformity	>95%
Color temperature	RGB color brightness through the software of 100 adjustable color temperature can be regulated according to the needs
Contrast ratio	Software 100 adjustable
MTBF MTDLF	≥10000Hours
Service life	≥50000Hours
Protection performance	Over temperature / overload / drop / image compensation / various correction techniques / over current / over voltage / lightning protection
Using ambient temperature	Outdoor, -40 to 50°C

1. I don’t know this website well, how can I trust you?

Sign-in-China.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.

Learn more about us from the following links:

19th Reklama Pholygraf Trade Fair 2012

ISA International Sign Expo 2012

Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011

Buyers say:

John Hanmer from USA

Jackson, Andy and David from UK

Ben Wong from Thailand

Adam Fernanders from South Africa

JLuciano from Brazil

Adam Fernanders from Australia

More

2. Not clear about the Price Policy of Sign-in-China.com?

3. How to pay? Can I use credit card?: You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.; For details, please refer to the following:; a) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online

b) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments

c) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ

d) Bank transfer
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ

e) Telegraphic Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-China.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.

4. Is it safe to pay online? Will it occur any security problems concerning my personal information?: PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security

5. Why did my PayPal payment fail?: The main reasons of failures and solutions:; a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE; b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE; c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE

6. How can I know if it is paid successfully?: We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.

7. How long can I receive the items?: Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.

8. How to receive my order ? Is it safe during shipping?: For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.

9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?: We will send you the tracking number after shipping your items, hereby please keep on checking your email.

10. How to return items and how about the warranty?: For details, please click the following links:; Changes & Returns: http://www.sign-in-global.com/info/ChangesandReturns.html; Warranty: http://www.sign-in-global.com/info/QualityWarranty.html

11. If I still have questions to this product, what shall I do?: Please click on the product page and submit your questions, we will reply you as soon as possible.

12. How to change my shipping address?

You can change your shipping address on the confirmation page of your purchase order.

Este producto no tiene atributos!

Preguntas y Respuestas

Pregunta	Do you still manufacture 8mm DIP LED Modules ? Do you manufacture complete screens. I require 4,800mm wide x 2,880mm high P8 DIP Not SMD. Thanks you Graeme Smith TecnoVISION Australia
Respuesta	hi my friend ,yes ,here is link :https://www.sign-in-china.com/products/20874/LED-DYB-HJY-P8-2.html;we only supply led unit panel ,you need to assemble into screens ;as for 4,800mm wide x 2,880mm high screen ,you need 396 pieces p8 led unit panel to accemble it .any more question ,please feel free to contact me by email :overseas07@sign-in-china.com Responder mediante sign in china
